EDiMate - Engineering Drawing

Features EDiMate - Engineering Drawing

EDiMate = ED (Engineering Drawing) + aniMate (giving LIFE).EDiMate is our effort to bring to life all those lifeless & boring diagrams in the books to LIFE on digital screens.
The app is still in the initial stages of development.
But it provides you with something which is super exciting compared to all other apps.EDiMate provides you with the ability to play around with different inputs & get fully drawn diagrams along with neatly written steps for a question that you can chose.
Right now the app can solve Projection of Lines problems.

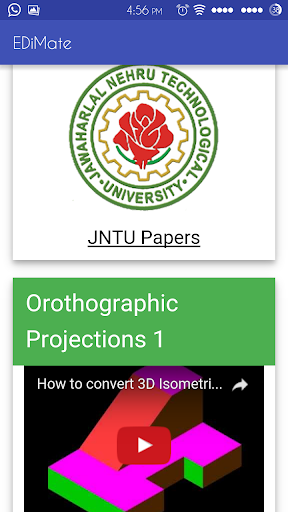

EDiMate also contains a link to around 52 previous JNTU papers on the subject.
Finally, it also has some videos from our YouTube Channel - bit.ly/cadmate.EDiMate started out with the challenge of solving all the problems in Engineering Drawing / Graphics given in ANY BOOK AROUND THE WORLD.
In the current demo you can create solutions to any combination of inputs on a Projection of Lines problem.EDiMate Pro app allows you to play around with more type of problems with different inputs.
Its still in beta phase.
But it can still create solutions to a great percentage of problems.
Download it here bit.ly/sriapkRight now, it will be helpful as an additional tool which you can use to understand projections with trial & error method.
We hope that in near future it will replace & enhance the experience of both Learning & Teaching the subject.Given Below are some ways in which you can use this app:CLASSIC STYLE.As soon as you load the app youre presented with a problem with some preset values.

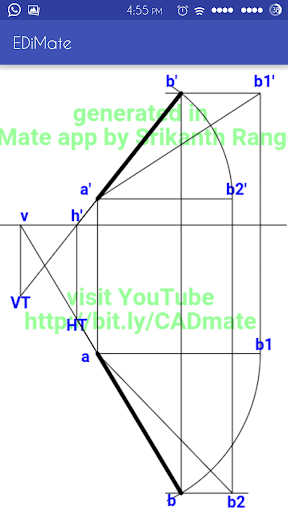

Press the DRAW BUTTON & the diagram with complete steps will be generated.
Classic book style!EXPERIMENT WITH DIFFERENT INPUTS.In the input textarea you can change the values & press DRAW BUTTON.
The solution to the changed values will be drawn in an instant.
Even steps and the question will be changed accordingly.
PLAY THE STEPSUse the steps buttons to jump to any step you want & move forward or backward as you please till you understand the steps to draw.
We are working on adding animations as well.
So stay tuned.READ THE STEPSWe have taken great care to write steps that dont miss any point.
Practice by following the steps generated till you understand the problem & start solving problems on your own.TEST YOUR SKILLUse the "Change Values" button to generate questions for practice.
After drawing it on the sheet, press the DRAW BUTTON & compare your sheet with our solution to find mistakes.
To avoid them in future & improve yourself of course!Have you used it in any new way?
Feel free to share your ideas & well make sure to develop the app further to suit your needs.
Thanks for taking the time to read.Read articles & follow our blog:https://srikanthrangdal.wordpress.comWatch video tutorials & subscribe to our channel:www.youtube.com/SrikanthRangdalORbit.ly/CADiMateUse our android apps & rate/comment:https://play.google.com/store/apps/developer?id=Srikanth+RangdalORbit.ly/sriapkCheck out my book on Engineering Drawing:http://onlinebookshopee.com/productsdetails.php?id=323Join our WhatsApp group & chat:https://chat.whatsapp.com/invite/7op2a7ALSN7LPzhJp26aqbORbit.ly/4bmateVisit our Facebook page & like it:www.facebook.com/cadimationSrikanth RangdalAsst ProfessorDept of Mechanical EngineeringNishitha College of Engineering & TechnologyContact me on: 810 6464 676Send your offers to: [email protected] for choosing EDiMate.
Thanks for taking a step towards a newer approach in Educating.
Regards,CADiMate Team
